Ruijie-Reyee RG-NBR6205-E High-performance Cloud Managed Security Router

The Ruijie Reyee RG-NBR6205-E is a Cloud Managed Security Router with 8 Gigabit Ethernet Ports, 1x 10/100/1000 Base-T WAN port, 1x 10/100/1000 Base-T LAN port, 6x 10/100/1000 Base-T LAN/WAN switchable ports plus 2x 1GBase-X SFP ports. Supports up to 500 recommended concurrent users, 1.5 Gbps aggregate throughput and remote cloud management. Offers a secure and dependable solution for Enterprise, Hospitality, Factory, Retail, etc.

Highlights:

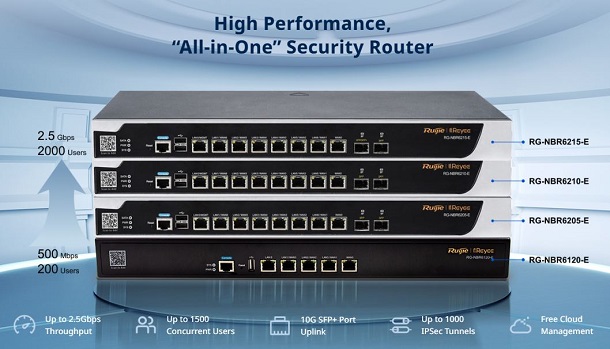

• High performance, “All-in-One” cloud managed security router

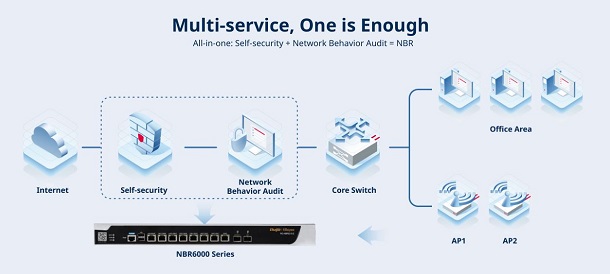

• All-in-one: Self-security + network behavior audit = NBR

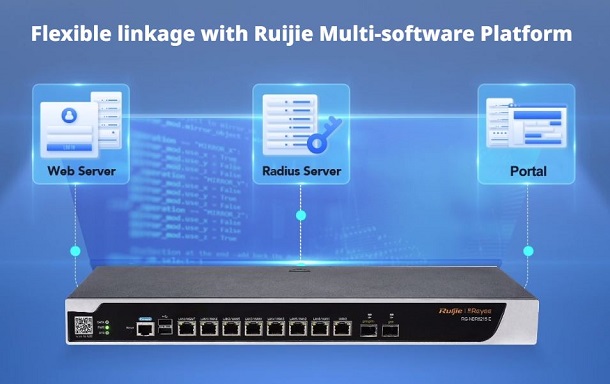

• Flexible linkage with Ruijie multi-software platform

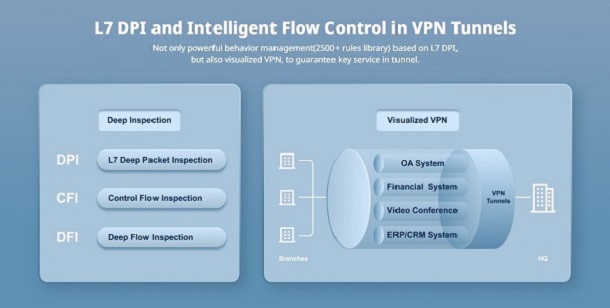

• L7 DPI and intelligent flow control in VPN tunnels
• 3 Year Warranty

Key Features & Benefits:

• Port Specifications:
  1× RJ45 10/100/1000 Base-T WAN Port
  1× RJ45 10/100/1000 Base-T LAN Port
  6x RJ4510/100/1000 Base-T LAN/WAN Switchable Ports
  2x 1GE Base-X SFP optical ports
  2x USB Ports
  1x Console Port
  1x Power button
• LED Indicators:
  1x System Status LED
  1x Power Status LED
  1x SATA LED

System Specifications:

• Throughput: 1.5 Gbps
• Concurrent Clients and IP Devices: 500
• CPU: 2 Cores, 1.2 GHz
• SDRAM/RAM: 2 GB
• Flash Memory: 8 GB EMMC + 8 MB SPIFLASH
• Additional Hard Disk Drive: Support for 1 TB (Optional, not delivered with the router)

Basic Features:

• Performance: PPPoE Server Accounts 500
• Internet Access Mode: PPPoE Client, DHCP Client, Static IP
• Access Mode Auto-Identification
• WAN Address Collision Avoidance
• VLAN
• IPv6
• SNMP

Network Management:

• Port Isolation
• Port Mirroring
• LAN Port Link Aggregation
• Behavior Management:
  - App Block (Time/IP-based Policy)
  - Website Filtering
  - Blacklist/Whitelist
• Application Identification
• Application Priority
• Flow Control:
  - User Flow Control Policies
  - IP-based Automatic Bandwidth Assignment
  - VPN Flow Control
• System Log
• Log Storage
• Fault Diagnosis
• Authentication:
  - Portal Authentication Password Authentication Voucher Authentication SMS Authentication

VPN:

• L2TP VPN
• PPTP VPN
• IPsec VPN
• L2TP/PPTP Tunnels: 400
• L2TP/IPsec VPN Performance: 400 Mbps

Routing:

• Static Routing
• RIP/RIPng
• OSPFv2
• OSPFv3
• Equal-Cost Multi-Path Routing
• Policy-Based Routing
• Active/Standby
• Switchover of Ports
• WAN Load Balancing

Network:

• PPPoE Client
• PPPoE Server: Support (CLI)
• DHCP Server, DHCP Snooping
• DNS Client, DNS Server, DNS Proxy
• FTP Client, FTP Server
• TFTP Client
• DDNS: Cloud DNS
• NAT
• SNMP
• Ruijie Cloud

Security:

• SYN Flood Attack Guard
• UDP Flood Attack Guard
• ICMP Flood Attack Guard
• ICMP Redirection Attack Guard
• ICMP Unreachable Packet Attack Guard
• Fraggle Attack Guard
• Overlength ICMP Packet Attack Prevention
• Winnuke Attack Guard
• IP-based Security, Domain Division
• Security Domain Division based on Physical Port (Sub Interface & Aggregation Port) and Dialup Port

ACL:

• ACL
• Time-based Extended ACL

Service & Support:

• Cloud Management
• App Management
• App Upgrade
• App Restart

Power Supply & Consumption:

• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption: Less than 25 W
• Cooling: Fanless operation

Environmental:

• Working Temperature: 0°C to 45°
• Operating Humidity: 10% to 90% RH (non-condensing)

Dimensions & Weight:

• Mounting: Desktop or 1U 19-inch Rack-mounted (Rack-mount brackets included)
• Unit Dimensions: (WxDxH) 440 x 200 x 43.6 mm
• Unit Weight: 2.9 Kg
• Package Dimensions (WxDxH): 520 x 345 x 106 mm
• Package GW: 3.94
• MCTN shipping dimensions (WxDxH): 560 x 470 x 380 mm
• MCTN QTY: 4
• MCTN Weight: 17.8 Kg

Certification: CE, ROHS

​ PartnerNet-Ruijie Reyee RG-NBR6000 Series Cloud Managed Security Router Datasheet

Package Contents:

• RG-NBR6205-E Router
• 2x Mounting Brackets
• 6x M4x8 mm Screws
• 1x Power Cord
• 1x Power Cord Retention Clip
• 4x Rubber Pads
• 1x DB-9 Console Cable
• 1x Ethernet Cable
• 1x User Manual
• 1x Warranty Card











































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Router
Aggregate Wireless Throughput	1.5Gbps
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	500
Rack Mount	ΝΑΙ
USB	ΝΑΙ
VPN	ΝΑΙ
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
SFP Ports	ΝΑΙ
Εγγύηση	3 Χρόνια
