Akuvox S563W Android 12 IP Indoor Unit with 8-Inch Capacitive Touch Screen, Bluetooth and Wi-Fi

The Akuvox S563W is an 8-inch IP indoor monitor with a high-resolution touch-screen display, Android 12 OS and an exceptional HD speaker, ensuring an unparalleled audio-visual intercom experience. Furthermore, features built-in IEEE802.11 b/g/n Wi-Fi as well as Bluetooth 4.2. The S563W stylish appearance and space-saving design blends seamlessly into every modern home.

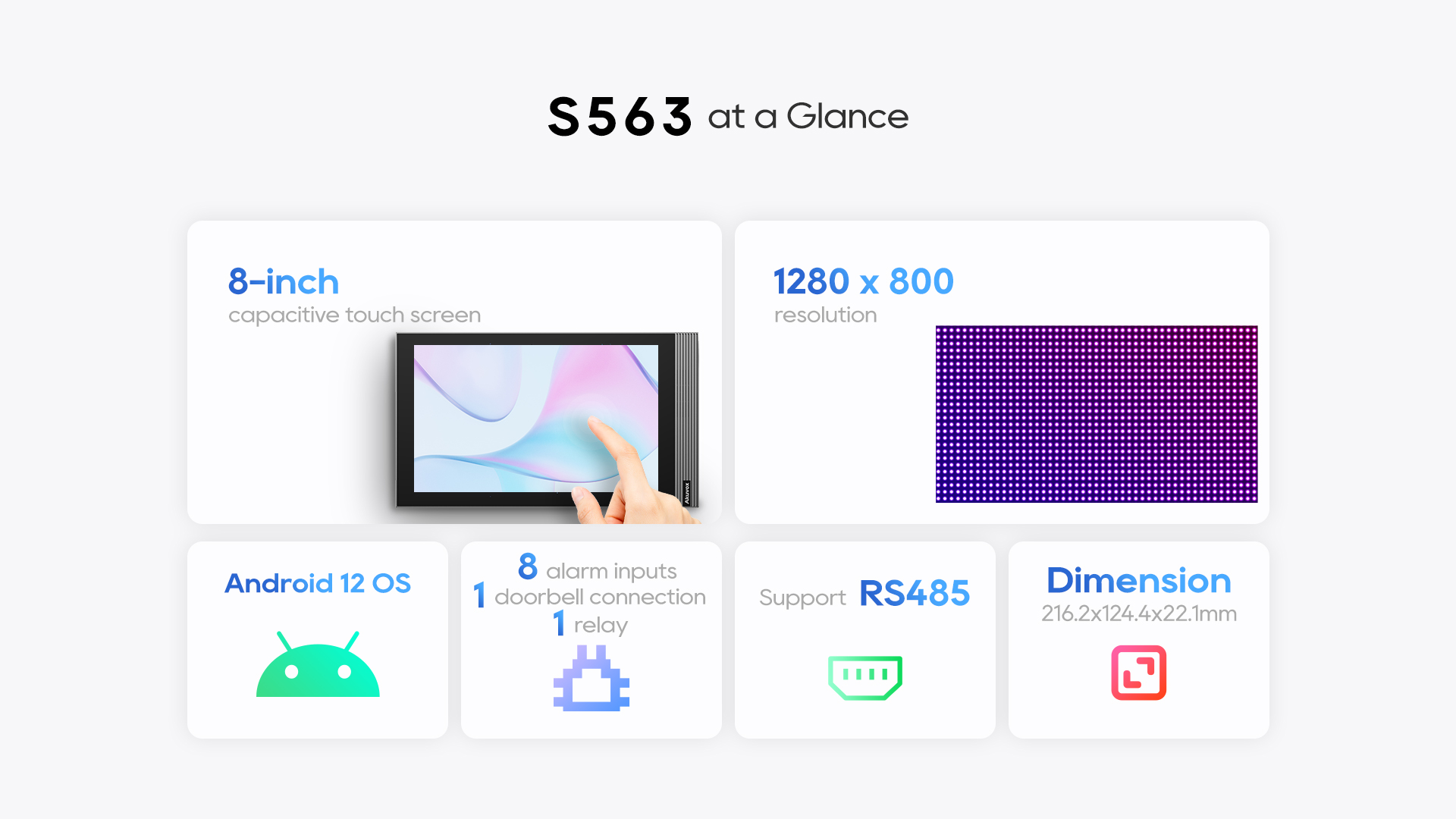

Key Features & Benefits:

• Seamless compatibility with Android 12 OS
• 8" Capacitive Touch Display
• Exceptional two-way HD audio communication
• Integrated Wi-Fi & Bluetooth
• Easy integration with SIP PBXes
• Powered by PoE or an external power supply
• Voice changer function to protect vulnerable individuals
• Compatible with US or European electrical wall boxes
• Built-in smart voice assistant

Physical & Power:

• Front panel: Plastic
• RAM / ROM: 2GB / 8GB
• Display: 8 Inch IPS LCD
• Screen: 8 Inch capacitive touch screen
• Wi-Fi: IEEE802.11 b/g/n
• Bluetooth:4.2
• RS485 Port: Support
• Relays Out: 1
• Bell in: 1
• Alarm Input：8
• Microphone: one microphone,-26dB
• Speaker: one speaker, 4Ω / 2W
• Ethernet Ports: 2xRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC Connector (if not using PoE)
• Tamper Resistant: Support
• Installation: Wall-mounted & Desktop
• Dimension: 216.2x124.4x22.1 mm
• Working Humidity: 10~90%
• Working Temperature: -10°C ~ to 45°C
• Storage Temperature: -20°C ~ to 70°C

Touch Screen Display:

• Display Mode: Normally black, Transmissive
• LCD Size: 8 inch (Diagonal)
• Aspect Ratio: 16:10
• Resolution: 1280x800
• Contrast ratio: 1200:1
• Luminance: 310 cd/m²
• Viewing Angle:
  - 80° Left, 80° Right
  - 80° Upper, 80° Lower
• Touch Screen: Projected capacitive

Audio:

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator
• Automatic Gain Control

Video:

• Streaming formats: H.263 & H.264

Networking:

• Protocols supported: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance:

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Firmware upgrade
• System logs (include door access logs)

Voice Assistant:

• Voice pickup distance up to 5 meters
• Voice recognition accuracy up to 95%
• Privacy protection with native voice data
• English support

Application Scenario:

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors

 PartnerNET Akuvox S563W Android 12 IP Indoor Monitor Datasheet
