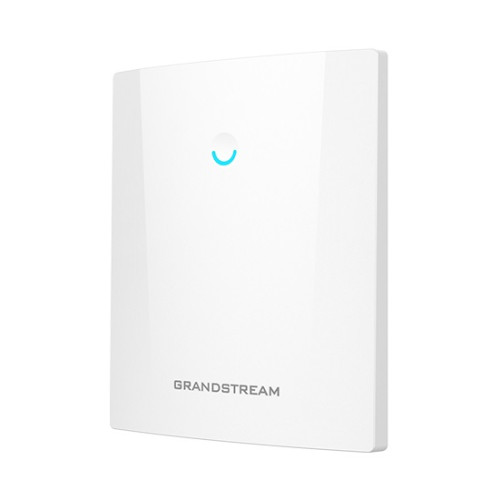

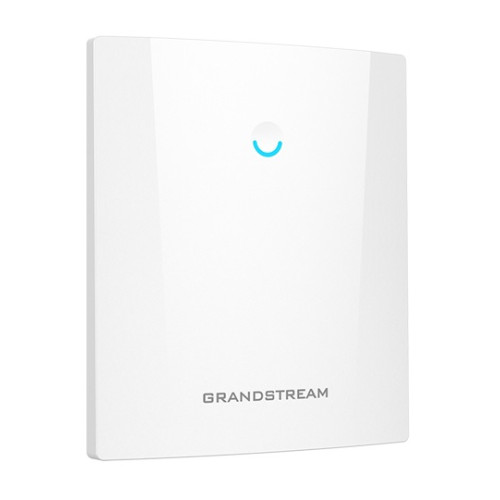

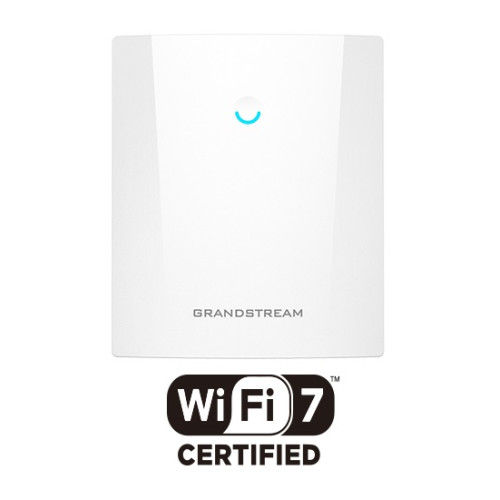

Grandstream GWN7670ELR Long-range Wi-Fi 7 Outdoor Access Point with integrated 802.3at PoE+ Input and Bluetooth® BLE 5.3

The GWN7670ELR is a high-performance outdoor Wi-Fi 7 BE3600 access point designed for medium-to-large businesses. Featuring advanced 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO plus DL/UL OFDMA, it delivers exceptional throughput and range. Boosted by Xtra Range 2.0 on the 5 GHz band, it shatters coverage barriers with enhanced signal penetration for seamless 360-degree connectivity. Its IP67-rated weatherproof design ensures stable operation in harsh outdoor environments. This model offers hybrid management flexibility through its local web UI or cloud-based platforms like GDMS Networking and GWN Manager. The GWN7670ELR delivers robust, long-range Wi-Fi for enterprises, multi-floor offices, warehouses, parks, hospitals, schools, and more.

Key Features & Benefits:

• 3.6 Gbps aggregate wireless throughput and 2.5 Gbps wired throughput
• Integrates Wi-Fi 7 Certified connectivity with dual-band 2.4 GHz 2×2:2 and 5 GHz 3×3:2 MU-MIMO, supporting MLO, 4K QAM, MRU, and preamble puncturing
• Delivers reliable connectivity across a vast 350-meter coverage range
• The SFP port delivers rock-solid optical transmission across distances of up to 20 km
• Connects 512 Wi-Fi client devices simultaneously without compromising speed
• Supports up to 1,000 PPSK accounts for secure, individualized user access
• Xtra Range 2.0 technology on the 5 GHz band enhances signal penetration and network coverage
• Engineered to withstand harsh outdoor environments with a certified IP67 rating
• Besides the intuitive local Web UI, you can manage APs via GDMS Networking and GWN Manager for Schools comprehensive cloud and on-premises control
• 3 Year Warranty

Specifications:

Radio:

• Antenna:
  5 single-frequency antennas
  2.4 GHz: 2 × 5.5 dBi
  5 GHz: 3 × 6.5 dBi
• MIMO:
  2.4 GHz: 2×2:2, MU-MIMO
  5 GHz: 3×3:2, MU-MIMO
• Frequency Bands:
  2.4 GHz Radio: 2,400–2,483.5 MHz
  5 GHz Radio: 5,150–5,850 MHz
  Please note: Not all frequency bands can be used in all regions
• Channel Bandwidth:
  2.4 GHz: 20 and 40 MHz
  5 GHz: 20, 40, 80 and 160 MHz
• Wi-Fi Data Rates:
  2.4 GHz:
  IEEE 802.11be: Up to 688 Mbps
  IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
  IEEE 802.11n: 6.5 Mbps to 300 Mbps
  IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  5 GHz:
  IEEE 802.11be: Up to 2,882 Mbps
  IEEE 802.11ax: 7.3 Mbps to 2,402 Mbps
  IEEE 802.11ac: 6.5 Mbps to 1,732 Mbps
  IEEE 802.11n: 6.5 Mbps to 300 Mbps
  IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  Please note: Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
• Maximum TX Power:
  2.4 GHz: 24 dBm
  5 GHz: 26 dBm
  Please note: Maximum power varies by country, frequency band and MCS rate
• Receiver Sensitivity:
  2.4 GHz:
  802.11b: -96 dBm@1 Mbps, -88 dBm@11 Mbps
  802.11g: -93 dBm@6 Mbps, -75 dBm@54 Mbps
  802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7
  802.11ax 20 MHz: -60 dBm@MCS11; 802.11ax 40 MHz: -58 dBm@MCS11
  802.11be 20 MHz: -60 dBm@MCS13; 802.11be 40 MHz: -57 dBm@MCS13
  5 GHz:
  802.11a: -92 dBm@6 Mbps, -74 dBm@54 Mbps;
  802.11n 20 MHz: -73 dBm@MCS7; 802.11n 40 MHz: -70 dBm@MCS7
  802.11ac 20 MHz: -67 dBm@MCS8; 802.11ac 40 MHz: -63 dBm@MCS9
  802.11ac 80 MHz: -59 dBm@MCS9
  802.11ax 20 MHz: -60 dBm@MCS11; 802.11ax 40 MHz: -58 dBm@MCS11
  802.11ax 80 MHz: -56 dBm@MCS11; 802.11ax 160 MHz: -52 dBm@MCS11
  802.11be 20 MHz: -59 dBm@MCS13; 802.11be 40 MHz: -56 dBm@MCS13
  802.11be 80 MHz: -54 dBm@MCS13; 802.11be 160 MHz: -52 dBm@MCS13

Coverage Range:

• Up to 350 m (1,148.29 ft)
• Please note: Coverage range may vary based on environment

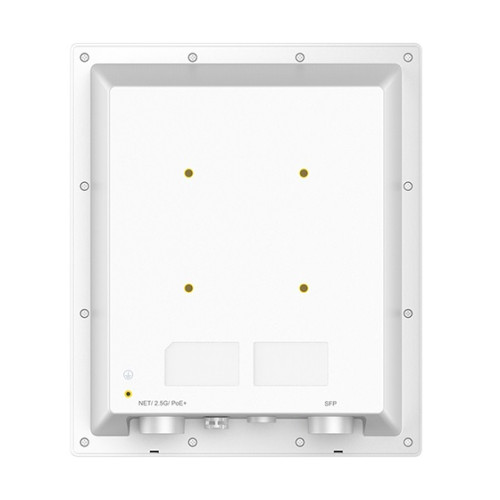

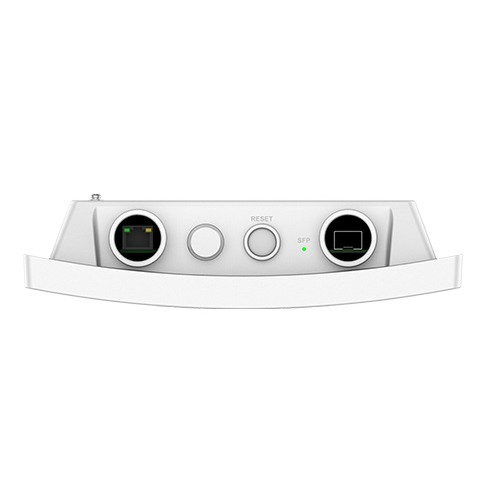

Network Ports:

• 1× 2.5 GbE RJ45 port (Supports PoE Input)
• 1× SFP port
• SFP Modules Supported:
  1.25G SFP SR, Multi-Mode Fiber (0.3 km (OM1)/0.55 km (OM2), 850 nm, duplex LC, DDM)
  10G SFP+ LR, Single-Mode Fiber (10 km, 1,310 nm, duplex LC, DDM)
  10G SR SFP+, Multi-Mode Fiber (0.3 km, 850 nm, duplex LC, DDM)
• Other Ports: 1× Reset Pinhole, 1× Kensington Lock
• System LED:
  1 tri-color LED for device tracking and status indication
  1 green LED for SFP status (Supports LC Fiber)

WLAN:

• Wi-Fi Standards: Wi-Fi 7 (IEEE 802.11a/b/g/n/ac/ax/be)
• SSIDs: 32 SSIDs in total, 16 per radio: 2.4 GHz & 5 GHz
• Client Capacity: Up to 512 concurrent clients
• Advanced Wireless Features:
  Beamforming
  OFDMA
  Multi-RU
  Preamble Puncturing
  4096-QAM
  Multilink Operation (MLO)
  Target Wake Time (TWT)
  Maximal Ratio Combining (MRC)
  Space-Time Block Coding (STBC)
  Low-Density Parity-Check (LDPC)
  802.11 Dynamic Frequency Selection (DFS)
  BSS Coloring
• SSID Hidden: Restricts access and enhances network privacy by hiding the SSID
• Multicast/Broadcast Suppression
• Multicast Enhancement: Converts multicast data into unicast data for transmission
• Bandwidth Limiting: Supports rate limiting based on SSID, Client, MAC, or IP address
• Band Steering, Client Steering
• RRM: Dynamic assignment of radio power and channels
• VPN: L2TPv3
• VLAN:
  Supports VLAN binding based on Interface, SSID, or MAC address
  Supports Management VLAN and Dynamic VLAN
• Time Policy:
  Tracks the time that the client connects to Wi-Fi
  Supports setting the amount of time for the client to connect to Wi-Fi and the reconnection type after a timeout
  Schedule: Supports SSID, LED, and Reboot scheduling

WLAN Extension:

• Bridge
• Extender
• Mesh: 2.4 GHz, 2.4 GHz & 5 GHz, 5 GHz
• Hotspot 2.0
• Wireless Roaming:
• 802.11k, 802.11v, 802.11r
• Layer 2 roaming

Network:

• IPv4: Static IP or DHCP assignment
• IPv6: Static IP or DHCP assignment
• DHCP: Supports Server, Client, and Relay modes
• NAT: NAT Pool
• LLDP: Link Layer Discovery Protocol for automated device identification

User Authentication:

• 802.1x Authentication
• MAC Authentication: RADIUS-based access control using client MAC addresses as credentials
• PPSK: PPSK with or without RADIUS, Easy PSK
• Captive Portal: Supports RADIUS, Social Login, Vouchers, Password, SAML SSO, and Active Directory authentication

Security & Maintenance:

• Encryption:
  Open System
  OSEN
  WPA2-PSK (Personal)
  WPA2-802.1x (Enterprise)
  WPA3-SAE (Personal)
  WPA3-802.1x (Enterprise)
  WPA3-OWE (Enhanced Open)
  WPA/WPA2, WPA2/WPA3
  Unique Security Certificate and Random Default Password per Device
• Firmware Security:
  Anti-Hacking Secure Boot
  Critical Data and Control Lockdown via Digital Signatures
  Forwarding Security:
  MAC Filtering
  Client Isolation
  OS Filtering
• WIDS:
  Inbound/Outbound Traffic Rules
  Rogue AP Detection and Containment
  ARP Attack Defense
  ND Attack Defense
  Management Protocol: TR-069, SNMP
  Service Quality: QoS 802.11e/WMM, 802.1p, 802.1q, TOS
• Management Platform:
  Local Management: Local Web UI: Embedded controller which can manage up to 50 local GWN APs
  Cloud Management:
  GDMS Networking: A free cloud management platform for unlimited GWN APs
  GWN Manager: Premise-based software controller for up to 3,000 GWN APs
  GWN App: Integrates GDMS Networking and GWN Manager to manage GWN APs via the app

Power & Energy:

• PoE Standards: 802.3at
• Max Power Consumption: 16 W

Environmental Endurance:

• Operating Temperature: -30 °C to 60 °C
• Storage Temperature -30 °C to 70 °C
• Humidity: 5%–95%, non-condensing

Certification & Compliance:

• FCC, CE, RCM, IC
• Ingress Protection: IP67
• Wi-Fi Alliance

Dimensions & Weight:

• Unit Dimensions (LxWxH): 270 × 230 × 57 mm
• Unit Weight: 1.3kg
• Package Dimensions (LxWxH): 43.9*33.9*13.7 cm
• Package Weight: 2.347 kg
• Installation Methods: Wall Mount, Pole Mount

 PartnerNET Grandstream GWN7670ELR Long-Range Dual-Band BE3600 Wi-Fi 7 Outdoor AP Datasheet

Package Contents:

• 1× GWN7670ELR Wi-Fi 7 Wireless AP

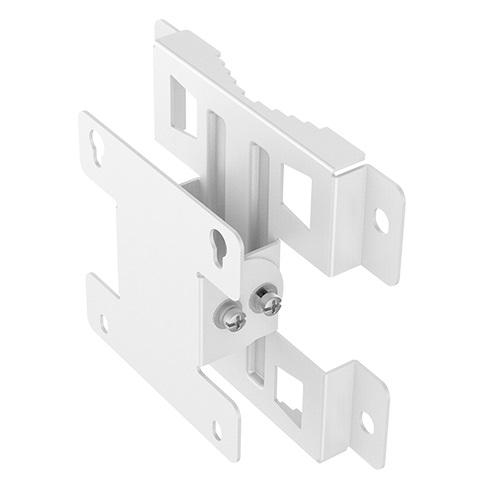

• Installation Accessories:
  1× Base Bracket
  1× Mounting Bracket
  2× Metal Straps
  4× Pan Head Machine Screws (M4 × 10 mm)
  4× Cup Head Hexagon Socket Machine Screws with Spring Washers (M5 × 12 mm)
  4× Plastic Expansions Bolts
• Interface Waterproof Kits:
  1× Nut Plug
  1× SFP Sealing Plug
  2× RJ45 Sealing Plugs
  3× O-Rings
  2× Clamp Nuts
• Manual and License:
  1× Quick Installation Guide
  ​1× Regulatory Paper
