Ruijie-Reyee RG-EG209GS 9-Port Gigabit Cloud Managed SFP Router

The Ruijie Reyee RG-EG209GS is a 9-Port desktop Cloud Managed SFP Router. Offers 8 Gigabit Ethernet Ports and 1 Gigabit SFP Port. Supports 1 WAN port, 5 LAN ports, 3 LAN/WAN ports as well as up tof 200 recommended concurrent users, 600Mbps max. throughput and remote cloud management.

Highlights:

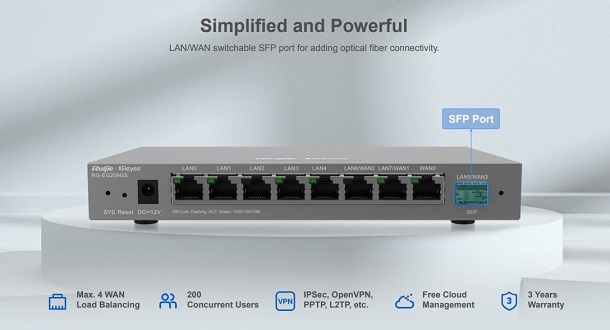

• LAN/WAN switchable SFP port for adding optical fiber connectivity

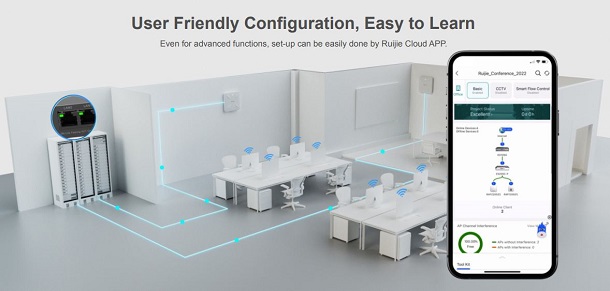

• User-friendly configuration and ease of use

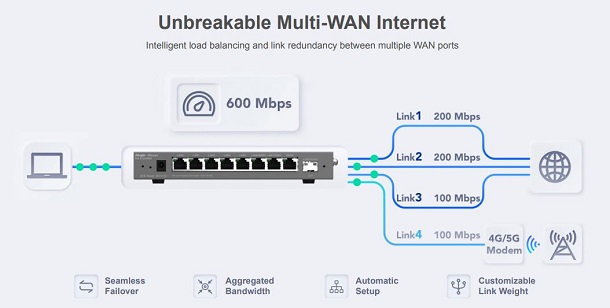

• Intelligent load balancing and link redundancy between multiple WAN ports

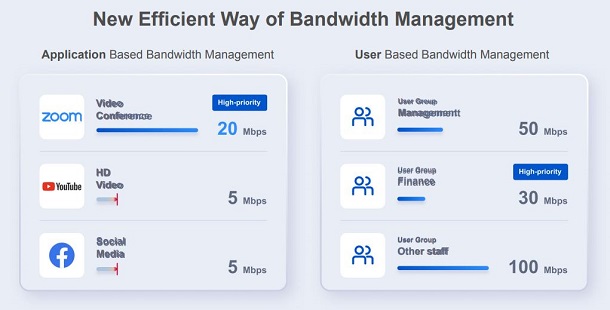

• Efficient bandwidth management based on applications and users

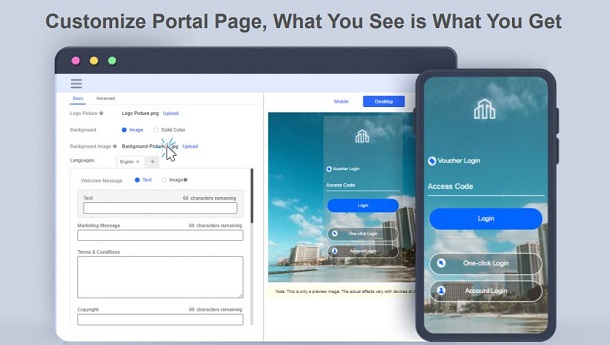

• Customized portal page, what you see is what you get
• 3 Year Warranty

Key Features & Benefits:

Port Specifications:

• Total number of RJ45 10/100/1000BASE-T ports: x8
• Total number of optical 1GE SFP ports: x1
• Max. number of LAN ports: x8
• Max. number of WAN ports: x4
• Number of fixed LAN ports: x5
• Number of fixed WAN ports: x1
• Number of LAN/WAN ports: x3
• LEDs:
  1x system status LED
  9x Ethernet port LEDs:
• Reset button: x1

System Specifications:

• CPU: Dual-core processor, 880 MHz clock frequency per core
• Flash memory: 32 MB
• RAM: 256 MB

System Performance Capacity:

• Max. number of concurrent sessions: 60000
• Recommended number of concurrent clients: 200
• Throughput:
  1000 Mbps (Turbo Mode)
    600 Mbps (Normal Mode)

Basic Configurations:

• AC mode
• Automatically identifying the Internet access mode and obtaining IP addresses
• Automatically learning the PPPoE username and password of other routers
• Configuration backup
  - Internet access mode:
  - Static IP address
  - Static IPv6 address
  - Dynamic IP address
  - Dynamic IPv6 address
  - PPPoE
• Local upgrade
• Log upload
• Online upgrade
• Restoring factory defaults
• Multi-language

Authentication:

• Portal authentication
• One-click authentication
• Password authentication
• SMS-based authentication
• Voucher authentication supported by Ruijie Cloud portal page
• Cloud portal authentication
• Local portal authentication
• QR code authentication
• Custom portal page
• Account-based authentication supported by Ruijie Cloud portal page
• CHAP, MS-CHAPv1, MS-CHAPv2
• Delivery through Ruijie Cloud portal page
• 802.1X authentication
• MAC address-based authentication
• PPPoE server
• Number of accounts supported by the PPPoE server: 100
• Number of concurrent clients supported by the PPPoE server: 65
• RADIUS flow control authorization
• PAP
• RADIUS authentication
• RADIUS client
• RADIUS accounting based on time or traffic
• RADIUS flow control authorization
• RADIUS proxy server
• RADIUS traffic quota authorization
• RADIUS user group authorization
• Third-party authentication

Ethernet Interface:

• Avoiding IP address conflicts on WAN interfaces
• Multiple IP addresses on a WAN port
• Load balancing
• MAC address cloning
• Multiple WAN interfaces on the same network segment
• PPPoE clients

Ethernet Switching:

• VLAN
• VLAN configuration supported on LAN ports
• VLAN priority

Gateway Features:

• WAN failover
• Application priority
• Application recognition
• Behavior management
• QoS
• Time-based blocking policy IP address-based blocking policy
• Website filtering: custom URL
• Traffic audit
• URL audit log
• Audit log server
• Uploading audit logs to a server

IP RoutingIP Routing:

• Application-based routing
• Bandwidth aggregation
• BGP, BGP4, BGP4+
• IPv4 static route
• IPv6 PBR
• Route selection based on national address database
• IPv6 static route
• Load balancing based on flows
• Load balancing based on source IP addresses
• Load balancing based on the interface weight
• Route selection by link quality
• OSPFv2, OSPFv3
• RIP, RIPng

IP Service:

• 3322.org
• ALG
• ARP binding
• Max. number of ARP entries: 1024
• Cloudflare
• DHCP client, DHCP server
• Option 43, Option 138
• Static/Dynamic NAT
• NAT loopback
• DNS client, DNS proxy, DNS server, No-IP DNS
• IPTV
• IPv4 ping
• IPv6, IPv6 ping
• Number of port mapping entries: 256
• Port mapping
• DDNS, Ruijie DDNS, Alibaba Cloud DDNS
• UPnP

Network Management & Monitoring:

• Web management

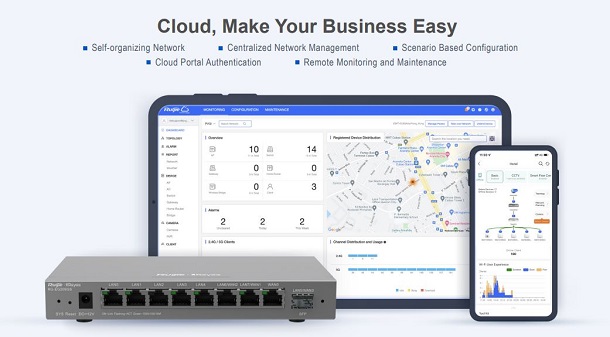

• Ruijie Cloud management
• Management on Ruijie Reyee App
• Remotely monitoring devices through Ruijie Reyee App
• Restarting devices through Ruijie Reyee App
• Upgrading device software version through Ruijie Reyee App
• Fault diagnosis
• TFTP client (IPv4 address)
• HTTPS login
• NTP client
• Scheduled device restart
• SNMPv1, v2c, and v3
• SON
• Web login information:
  - Default IP Address: 192.168.110.1
  - Default Password: admin
• Max. number of managed devices (router mode):
  - AP and NBS series: 150
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series
• Maximum number of managed devices (AC mode):
  - AP and NBS series: 500
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series

SD-WAN:

• SD-WAN
• SD-WAN performance: 80 Mbps
• Number of tunnels supported by SD-WAN: 24
• Max. number of SD-WAN branches: 8
• Active/Standby mode (automatically switching to the standby interface when the active interface fails)
• Centralized traffic forwarding policy
• Multi-WAN link bundling efficiency (lab data): ≥ 80%

Security:

• ACL: Yes
• Malformed packet attack defense
• Fragmentation attack defense
• Teardrop attack defense
• LAND attack defense
• SYN flood attack defense
• Smurf attack defense
• IP attack defense
• Disabling ping
• Stateful ACL
• IP-MAC binding
• Network sharing prevention
• Security log
• Security zone
• User group-based connection limiting

VPN:

• IPsec VPN
• IPsec VPN bandwidth: 28 Mbps
• Max. number of branches in IPsec VPN networking: 8
• L2TP VPN
• L2TP VPN bandwidth: 130 Mbps
• Max. number of branches in L2TP VPN networking: 8
• OpenVPN
• OpenVPN bandwidth: 20 Mbps
• Maximum number of branches in OpenVPN networking: 16
• PPTP VPN
• PPTP VPN bandwidth: 190 Mbps
• Maximum number of branches in PPTP VPN networking: 8
• Number of VPN accounts for L2TP, PPTP, and OpenVPN: 100
• WireGuard server, WireGuard client
• WireGuard performance: 80 Mbps
• Number of concurrent tunnels supported by the WireGuard server: 8
• Max. number of APs (AC mode): 500
• Max. number of devices that can be managed: 128
• Wireless Intelligent Optimization (WIO)

Power Supply & Consumption:

• Power supply: DC power adapter
• Dimensions of the DC connector:
  - Outer diameter: 5.5 mm
  - Inner diameter: 2.1 mm
  - Depth: 10.0 mm
• Maximum power consumption: 18 W
• Cooling: Fanless design, natural cooling
• Surge protection:
  - Service port: ±4 kV for common mode
  - Power connector: ±4 kV for common mode and ±4 kV for differential mode

Environment & Reliability:

• Mounting options: Desk
• Operating humidity: 10% RH to 90% RH (non-condensing)
• Operating temperature: 0°C to 40°C
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Storage temperature: -40°C to +70°C

Dimensions & Weight:

• Unit dimensions (WxDxH): 202 x 108 x 28 mm
• Unit weight: 0.98 kg
• Package dimensions (WxDxH): 610 x 370 x 335 mm
• Package weight: 1.05 kg

​ PartnerNet-Ruijie Reyee RG-EG209GS SFP Cloud Managed Router Datasheet

Package Contents:

• RG-EG209GS Router
• Foot Pad (x4)
• Power Adapter
• User Manual
• Warranty Card





























































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Router
Aggregate Wireless Throughput	600Mbps
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	200
VPN	ΝΑΙ
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
SFP Ports	ΝΑΙ
Εγγύηση	3 Χρόνια
