Ruijie-Reyee RG-EG310GH-P-E 10-Port High Performance Cloud Managed PoE Office Router

The Ruijie Reyee RG-EG310GH-P-E is a 10-port desktop full-Gigabit cloud managed PoE office router. Offers 1 WAN port, 6 LAN ports, and 3 LAN/WAN ports. Supports 8x PoE/PoE+ interfaces, 110W max. PoE power budjet, up to 300 recommended concurrent clients, 1.5Gbps max. throughput plus remote cloud management. Secure and dependable solution for office, hotel, school, retail, CCTV and more.

Highlights:

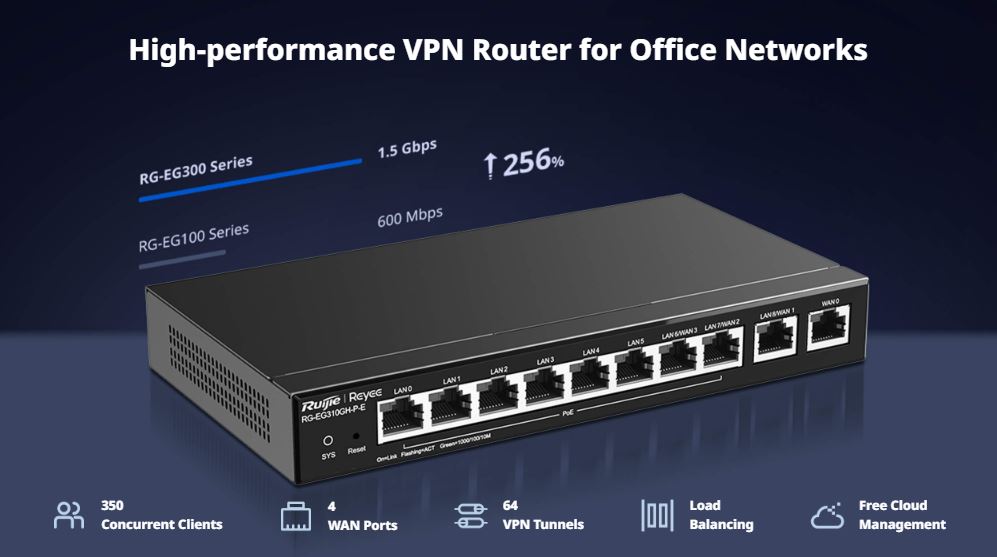

• 1.5 Gbps throughput, high-performance VPN router for office networks
• Powerful VPN for branches and remote employees
• Traffic visualization and monitoring
• Efficient bandwidth management based on applications and users

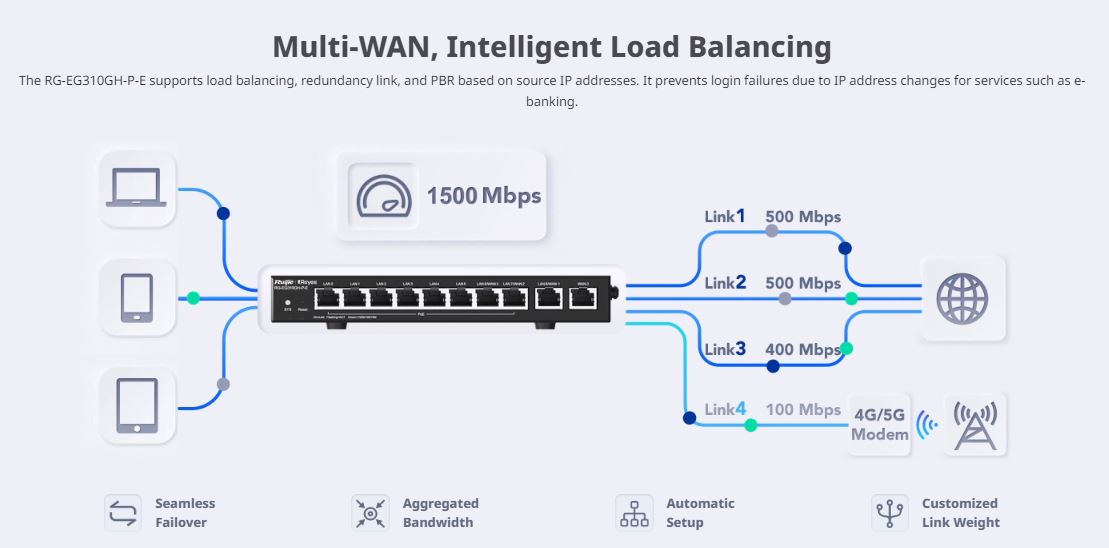

• Multi-WAN, intelligent load balancing
• 3 Year Warranty

Key Features & Benefits:

Port Specifications:

• Total number of RJ45 10/100/1000BASE-T ports: x10
• Max. number of LAN ports: x9
• Max. number of WAN ports: x4
• Number of fixed LAN ports: x6
• Number of fixed WAN ports: x1
• Number of LAN/WAN ports: x3
• LEDs:
    1x system status LED
  10x Ethernet port LEDs
• Reset button: x1

System Specifications:

• CPU: Dual-core processor, 1.35 GHz clock frequency per core
• Flash memory: 256 MB
• RAM: 512 MB

Power Supply & Consumption:

• Power supply: DC power adapter
• Dimensions of the DC connector:
  - Outer diameter: 5.5 mm (0.22 in.)
  - Inner diameter: 2.1 mm (0.08 in.)
  - Depth: 10.0 mm (0.39 in.)
• Max. power consumption: 130 W
• Max. PoE power budget: 110 W
• Number of PoE Out ports: 8
• PoE budget per port: 30 W
• PoE Out standard: IEEE 802.3af/at (PoE/PoE+)
• PoE power pins: 1–2 (+), 3–6 (-)

System Performance Capacity:

• Max. number of concurrent sessions: 100000
• Recommended number of concurrent clients: 350
• Throughput: 1500 Mbps

Basic Configurations:

• AC mode
• Automatically identifying the Internet access mode and obtaining IP addresses
• Automatically learning the PPPoE username and password of other routers
• Configuration backup
• Internet access mode:
  - Static IP address
  - Static IPv6 address
  - Dynamic IP address
  - Dynamic IPv6 address
  - PPPoE
• Local upgrade
• Log upload
• Online upgrade
• Restoring factory defaults
• Multi language

Authentication:

• Portal authentication
• One-click authentication
• Password authentication
• SMS-based authentication
• Voucher authentication supported by Ruijie Cloud portal page
• Cloud portal authentication
• Local portal authentication
• QR code authentication
• Custom portal page
• Account-based authentication supported by Ruijie Cloud portal page
• CHAP, MS-CHAPv1, MS-CHAPv2
• Delivery through Ruijie Cloud portal page
• 802.1X authentication
• MAC address-based authentication
• PPPoE server
• Number of accounts supported by the PPPoE server: 300
• Number of concurrent clients supported by the PPPoE server: 128
• RADIUS flow control authorization
• PAP
• RADIUS authentication
• RADIUS client
• RADIUS accounting based on time or traffic
• RADIUS flow control authorization
• RADIUS proxy server
• RADIUS traffic quota authorization
• RADIUS user group authorization
• Third-party authentication

Ethernet Interface:

• Avoiding IP address conflicts on WAN interfaces
• Multiple IP addresses on a WAN port
• Load balancing
• MAC address cloning
• Multiple WAN interfaces on the same network segment
• PPPoE clients

Ethernet Switching:

• VLAN
• VLAN configuration supported on LAN ports
• VLAN priority

Gateway Features:

• WAN failover
• Application priority
• Application recognition
• Behavior management
• QoS
• Time-based blocking policy
• IP address-based blocking policy
• Website filtering: custom URL
• Traffic audit
• URL audit log
• Audit log server
• Uploading audit logs to a server

IP Routing:

• Application-based routing
• Bandwidth aggregation
• BGP, BGP4, BGP4+
• IPv4 static route
• IPv6 PBR
• Route selection based on national address database
• Pv6 static route
• Load balancing based on flows
• Load balancing based on source IP addresses
• Load balancing based on the interface weight
• Route selection by link quality
• OSPFv2, OSPFv3
• RIP, RIPng

IP Service:

• 3322.org
• ALG
• ARP binding
• Max. number of ARP entries: 1024
• Cloudflare
• DHCP client
• DHCP server
• Option 43. Option 138
• Static/Dynamic NAT
• NAT loopback
• DNS client, DNS proxy, DNS server, No-IP DNS
• IPTV
• IPv4 ping
• IPv6, IPv6 ping
• Number of port mapping entries: 512
• Port mapping
• DDNS, Ruijie DDNS, Alibaba Cloud DDNS
• UPnP

Network Management & Monitoring:

• Web management
• Ruijie Cloud management
• Management on Ruijie Reyee App
• Remotely monitoring devices through Ruijie Reyee App
• Restarting devices through Ruijie Reyee App
• Upgrading device software versionthrough Ruijie Reyee App
• Fault diagnosis
• TFTP client (IPv4 address)
• HTTPS login
• NTP client
• Scheduled device restart
• SNMPv1, v2c, and v3
• SON
• Web login information:
  - Default IP Address: 192.168.110.1
  - Default Password: admin
• Max. number of managed devices (router mode):
  - AP and NBS series: 150
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series
• Max. number of managed devices (AC mode):
  - AP and NBS series: 500
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series

SD-WAN:

• SD-WAN
• SD-WAN performance: 300 Mbps
• Number of tunnels supported by SD-WAN: 192
• Max. number of SD-WAN branches: 64
• Active/Standby mode (automatically switching to the standby interface when the active interface fails)
• Centralized traffic forwarding policy
• Multi-WAN link bundling efficiency (lab data): ≥ 80%

Security:

• ACL
• Malformed packet attack defense
• Fragmentation attack defense
• Teardrop attack defense
• LAND attack defense
• SYN flood attack defense
• Smurf attack defense
• IP attack defense
• Disabling ping
• Stateful ACL
• IP-MAC binding
• Network sharing prevention
• Security log
• Security zone
• User group-based connection limiting

VPN:

• IPsec VPN
• IPsec VPN bandwidth: 170 Mbps
• Max. number of branches in IPsec VPN networking: 64
• L2TP VPN
• L2TP VPN bandwidth: 540 Mbps
• Max. number of branches in L2TP VPN networking: 64
• OpenVPN
• OpenVPN bandwidth: 100 Mbps
• Max. number of branches in OpenVPN networking: 64
• PPTP VPN
• PPTP VPN bandwidth: 640 Mbps
• Max. number of branches in PPTP VPN networking: 64
• Number of VPN accounts for L2TP, PPTP, and OpenVPN: 300
• WireGuard server, WireGuard client
• WireGuard performance: 300 Mbps
• Number of concurrent tunnels supported by the WireGuard server: 64

WLAN:

• Max. number of APs (AC mode): 500
• Max. number of devices that can be managed: 128
• Wireless Intelligent Optimization (WIO)

Dimensions & Weight:

• Unit dimensions (WxDxH): 202 x 108 x 28 mm
• Unit Weight: 1.5 kg
• Package dimensions (WxDxH): 305 x 289 x 64 mm
• Package Weight: 1.62 kg

Environment & Reliability:

• Cooling: Fanless design, natural cooling
• Mounting options: Desk
• Operating humidity: 10% RH to 90% RH (non-condensing)
• Operating temperature: 0°C to 40°C
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Storage temperature: -40°C to +70°C
• Surge protection:
  - Service port: ±4 kV for common mode
  - Power connector: ±6 kV for common mode and ±6 kV for differential mode

​ PartnerNet-Ruijie Reyee RG-RG310GH-P-E 10-Port Cloud managed PoE Router Datasheet

Package Contents:

• RG-EG310GH-P-E Router
• Foot Pad (x4)
• Power Adapter
• Power Cord 1.8 m (70.86 in.)
• User Manual
• Warranty Card





































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Router
Aggregate Wireless Throughput	1.5Gbps
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	300
VPN	ΝΑΙ
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
POE	ΝΑΙ
PoE Power Budget	110W
Εγγύηση	3 Χρόνια
