Ruijie-Reyee RG-EG305GH-P-E 5-Port High Performance Cloud Managed PoE Office Router

The Ruijie Reyee RG-EG305GH-P-E is a 5-port desktop full-Gigabit cloud managed PoE office router. Offers 1 WAN port, 1 LAN port and 3 LAN/WAN ports. Supports 4x PoE/PoE+ interfaces, 60W max. PoE power budjet, up to 300 recommended concurrent clients,1.5Gbps max. throughput plus remote cloud management. Secure and dependable solution for office, hotel, school, retail, CCTV and more.

Highlights:

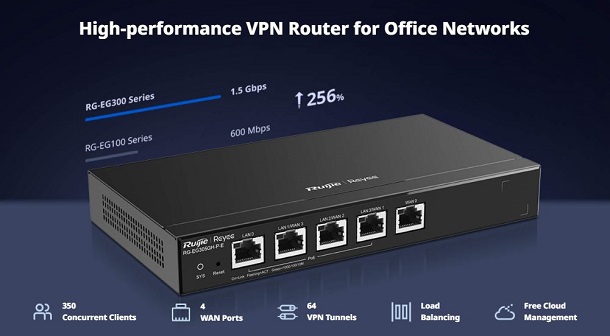

• 1.5 Gbps throughput, high-performance VPN router for office networks

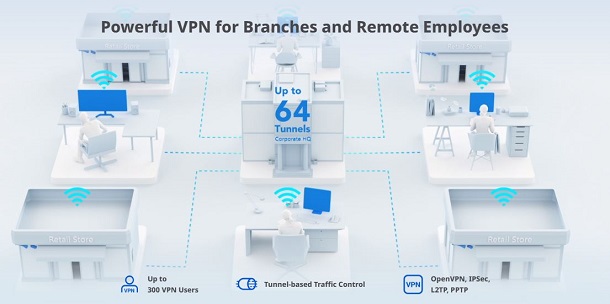

• Powerful VPN for branches and remote employees

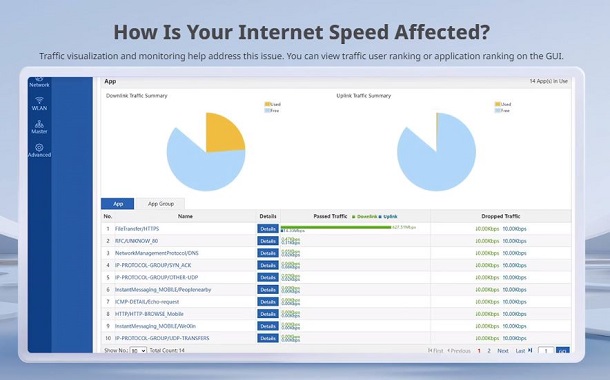

• Traffic visualization and monitoring

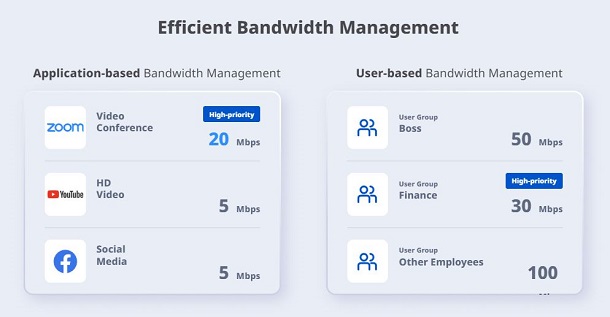

• Efficient bandwidth management based on applications and users

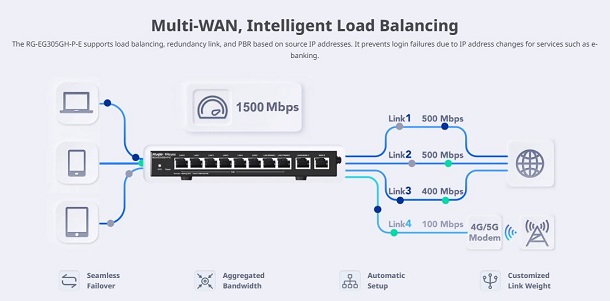

• Multi-WAN, intelligent load balancing
• 3 Year Warranty

Key Features & Benefits:

Port Specifications:

• Total number of RJ45 10/100/1000BASE-T ports: x5
• Max. number of LAN ports: x4
• Max. number of WAN ports: x4
• Number of fixed LAN ports: x1
• Number of fixed WAN ports: x1
• Number of LAN/WAN ports: x3
• LEDs:
  1x system status LED
  5x Ethernet port LEDs
• Reset button: x1

System Specifications:

• CPU: Dual-core processor, 1.35 GHz clock frequency per core
• Flash memory: 256 MB
• RAM: 512 MB

Power Supply & Consumption:

• Power supply: DC power adapter
• Dimensions of the DC connector:
  - Outer diameter: 5.5 mm (0.22 in.)
  - Inner diameter: 2.1 mm (0.08 in.)
  - Depth: 10.0 mm (0.39 in.)
• Max. power consumption: 80 W
• Max. PoE power budget: 60 W
• Number of PoE Out ports: 4
• PoE budget per port: 30 W
• PoE Out standard: IEEE 802.3af/at (PoE/PoE+)
• PoE power pins: 1–2 (+), 3–6 (-)

System Performance Capacity:

• Max. number of concurrent sessions: 100000
• Recommended number of concurrent clients: 350
• Throughput: 1500 Mbps

Basic Configurations:

• AC mode
• Automatically identifying the Internet access mode and obtaining IP addresses
• Automatically learning the PPPoE username and password of other routers
• Configuration backup
• Internet access mode:
  - Static IP address
  - Static IPv6 address
  - Dynamic IP address
  - Dynamic IPv6 address
  - PPPoE
• Local upgrade
• Log upload
• Online upgrade
• Restoring factory defaults
• Multi language

Authentication:

• Portal authentication
• One-click authentication
• Password authentication
• SMS-based authentication
• Voucher authentication supported by Ruijie Cloud portal page
• Cloud portal authentication
• Local portal authentication
• QR code authentication
• Custom portal page
• Account-based authentication supported by Ruijie Cloud portal page
• CHAP, MS-CHAPv1, MS-CHAPv2
• Delivery through Ruijie Cloud portal page
• 802.1X authentication
• MAC address-based authentication
• PPPoE server
• Number of accounts supported by the PPPoE server: 300
• Number of concurrent clients supported by the PPPoE server: 128
• RADIUS flow control authorization
• PAP
• RADIUS authentication
• RADIUS client
• RADIUS accounting based on time or traffic
• RADIUS flow control authorization
• RADIUS proxy server
• RADIUS traffic quota authorization
• RADIUS user group authorization
• Third-party authentication

Ethernet Interface:

• Avoiding IP address conflicts on WAN interfaces
• Multiple IP addresses on a WAN port
• Load balancing
• MAC address cloning
• Multiple WAN interfaces on the same network segment
• PPPoE clients

Ethernet Switching:

• VLAN
• VLAN configuration supported on LAN ports
• VLAN priority

Gateway Features:

• WAN failover
• Application priority
• Application recognition
• Behavior management
• QoS
• Time-based blocking policy
• IP address-based blocking policy
• Website filtering: custom URL
• Traffic audit
• URL audit log
• Audit log server
• Uploading audit logs to a server

IP Routing:

• Application-based routing
• Bandwidth aggregation
• BGP, BGP4, BGP4+
• IPv4 static route
• IPv6 PBR
• Route selection based on national address database
• Pv6 static route
• Load balancing based on flows
• Load balancing based on source IP addresses
• Load balancing based on the interface weight
• Route selection by link quality
• OSPFv2, OSPFv3
• RIP, RIPng

IP Service:

• 3322.org
• ALG
• ARP binding
• Max. number of ARP entries: 1024
• Cloudflare
• DHCP client
• DHCP server
• Option 43. Option 138
• Static/Dynamic NAT
• NAT loopback

Network Management & Monitoring:

• Web management
• Ruijie Cloud management
• Management on Ruijie Reyee App
• Remotely monitoring devices through Ruijie Reyee App
• Restarting devices through Ruijie Reyee App
• Upgrading device software versionthrough Ruijie Reyee App
• Fault diagnosis
• TFTP client (IPv4 address)
• HTTPS login
• NTP client
• Scheduled device restart
• SNMPv1, v2c, and v3
• SON
• Web login information:
  - Default IP Address: 192.168.110.1
  - Default Password: admin
• Max. number of managed devices (router mode):
  - AP and NBS series: 150
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series
• Max. number of managed devices (AC mode):
  - AP and NBS series: 500
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series

SD-WAN:

• SD-WAN
• SD-WAN performance: 300 Mbps
• Number of tunnels supported by SD-WAN: 192
• Max. number of SD-WAN branches: 64
• Active/Standby mode (automatically switching to the standby interface when the active interface fails)
• Centralized traffic forwarding policy
• Multi-WAN link bundling efficiency (lab data): ≥ 80%

Security:

• ACL
• Malformed packet attack defense
• Fragmentation attack defense
• Teardrop attack defense
• LAND attack defense
• SYN flood attack defense
• Smurf attack defense
• IP attack defense
• Disabling ping
• Stateful ACL
• IP-MAC binding
• Network sharing prevention
• Security log
• Security zone
• User group-based connection limiting

VPN:

• IPsec VPN
• IPsec VPN bandwidth: 170 Mbps
• Max. number of branches in IPsec VPN networking: 64
• L2TP VPN
• L2TP VPN bandwidth: 540 Mbps
• Max. number of branches in L2TP VPN networking: 64
• OpenVPN
• OpenVPN bandwidth: 100 Mbps
• Max. number of branches in OpenVPN networking: 64
• PPTP VPN
• PPTP VPN bandwidth: 640 Mbps
• Max. number of branches in PPTP VPN networking: 64
• Number of VPN accounts for L2TP, PPTP, and OpenVPN: 300
• WireGuard server, WireGuard client
• WireGuard performance: 300 Mbps
• Number of concurrent tunnels supported by the WireGuard server: 64

WLAN:

• Max. number of APs (AC mode): 500
• Max. number of devices that can be managed: 128
• Wireless Intelligent Optimization (WIO)

Dimensions & Weight:

• Unit dimensions (WxDxH): 202 x 108 x 28 mm
• Unit Weight: 1.2 kg
• Package dimensions (WxDxH): 305 x 289 x 64mm
• Package Weight: 1.51 kg

Environment & Reliability:

• Cooling: Fanless design, natural cooling
• Mounting options: Desk
• Operating humidity: 10% RH to 90% RH (non-condensing)
• Operating temperature: 0°C to 40°C
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Storage temperature: -40°C to +70°C
• Surge protection:
• - Service port: ±4 kV for common mode
• - Power connector: ±6 kV for common mode and ±6 kV for differential mode

​ PartnerNet-Ruijie Reyee RG-RG305GH-P-E Cloud Managed PoE Office Router Datasheet

Package Contents:

• RG-EG305GH-P-E Router
• Foot Pad (x4)
• Power Adapter
• Power Cord 1.8 m (70.86 in.)
• User Manual
• Warranty Card

































































































































Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Router
Aggregate Wireless Throughput	1.5Gbps
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	300
VPN	ΝΑΙ
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
POE	ΝΑΙ
PoE Power Budget	60W
Εγγύηση	3 Χρόνια
