Ruijie-Reyee RG-EG105GW(T) Wi-Fi 5 1267Mbps Wireless All-in-One Business Router

The Ruijie-Reyee RG-EG105GW(T) is an AC1300M Wi-Fi5 business router ideal for offices, cafes, restaurants, retail stores and many more. This device can be used also as an AP. The software system of the RG-EG105GW(T) supports enterprise-class application control and access authentication. Furthermore, supports the expansion of four wired RJ45 interfaces and allows the access of wireless clients. The RG-EG105GW(T) adopts a flexible design that can be mounted on a workbench or wall to effectively save space.

Highlights:

• A professional wireless router for small size businesses
• Easy to set up the whole network with all-in-one wireless router
• Press button, Reyee Mesh networking done

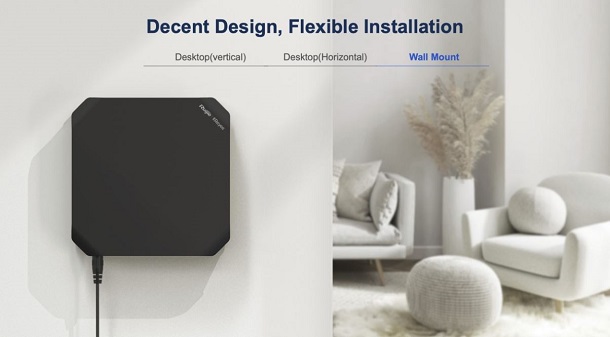

• Decent design, flexible installation on desktop and wall

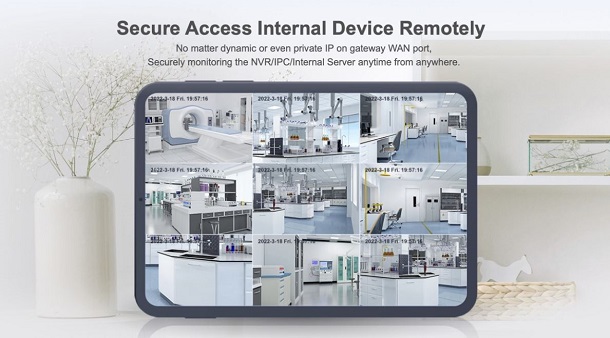

• Securely monitoring the NVR/IPC/internal server anytime from anywhere
• 3 Year Warranty

Key Features & Benefits:

• Port Specifications:
  - Total number of RJ45 10/100/1000BASE-T ports: x5
  - Max. number of LAN ports: x4
  - Max. number of WAN ports: x4
  - Number of fixed LAN ports: x1
  - Number of fixed WAN ports: x1
  - Number of LAN/WAN ports: x3
• LEDs:
  1 x system status LED
  3 x mesh LEDs
• Reset button: x1
• USB 2.0 port: x1

System Specifications:

• CPU: Dual-core processor, 880 MHz clock frequency
• Flash memory: 32 MB SPI NOR Flash
• RAM: 256 MB DDR3

Antenna: Built-in Omni-directional Antennas (2.4 GHz: 3dBi, 5 GHz: 4dBi)

Wi-Fi Radio:

• Wi-Fi standard: Wi-Fi 5 (IEEE 802.11ac) standard, compatible with IEEE 802.11a/b/g/n standards
• Radio design:
  Dual-radio
  4 spatial streams
  2.4 GHz: 2 x 2, MIMO
     5 GHz: 2 x 2, MIMO
• Operating Bands:
  2.4 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11b/g/n)
     5 GHz Wi-Fi: Wi-Fi 4 (IEEE 802.11a/n), Wi-Fi 5 (IEEE 802.11ac)
• Coverage range: 115㎡
• Data Rates:
  2.4 GHz channel width: Auto/20/40 MHz
     5 GHz channel width: Auto/20/40/80 MHz
  2.4 GHz wireless data rate: 400 Mbps
     5 GHz wireless data rate: 866 Mbps
• Max. wireless data rate: 1266 Mbps

System Performance Capacity:

• Max. number of concurrent sessions: 12000
• Recommended number of concurrent clients: 150
• Throughput: 700 Mbps

Basic Configurations:

• Automatically identifying the Internet access mode & obtaining IP addresses
• Automatically learning the PPPoE username and password of other routers
• Configuration backup
• Internet access mode:
  - Static IP address
  - Static IPv6 address
  - Dynamic IP address
  - Dynamic IPv6 address
  - PPPoE
• Local upgrade
• Log upload
• Online upgrade
• Restoring factory defaults
• System language

Authentication:

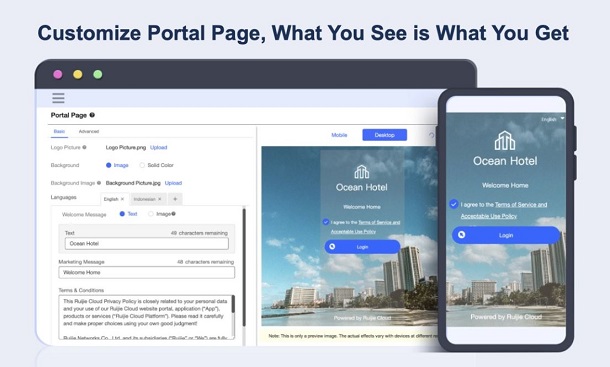

• Portal authentication
• One-click authentication
• Password authentication
• SMS-based authentication
• Cloud portal authentication
• Local portal authentication
• QR code authentication
• CHAP, MS-CHAPv1, MS-CHAPv2
• 802.1X authentication
• MAC address-based authentication
• PPPoE server
• Number of accounts supported by the PPPoE server: 50
• Number of concurrent clients supported by the PPPoE server: 15
• PAP
• RADIUS authentication
• RADIUS client
• RADIUS accounting based on time or traffic
• RADIUS proxy server
• RADIUS traffic quota authorization
• RADIUS user group authorization

Ethernet Interface:

• Avoiding IP address conflicts on WAN interfaces
• Load balancing
• MAC address cloning
• Multiple WAN interfaces on the same network segment
• PPPoE clients

Ethernet Switching:

• VLAN
• Maximum number of VLANs: 16
• VLAN configuration supported on LAN ports
• VLAN priority
• Number of MAC address entries to be filtered: 256

Gateway Features:

• WAN failover
• Application priority
• Application recognition
• Behavior management
• Flow control
• Time-based blocking policy IP address-based blocking policy
• Website filtering: custom URL
• Traffic audit
• URL audit log
• Audit log server
• Uploading audit logs to a server

IP Routing:

• Application-based routing
• Bandwidth aggregation
• IPv4 static route
• IPv6 PBR
• IPv6 static route
• Load balancing based on flows
• Load balancing based on source IP addresses
• Load balancing based on the interface weight
• Route selection by link quality
• RIP, RIPng

IP Service:

• 3322.org
• ALG
• ARP binding
• Maximum number of ARP entries: 1024
• Cloudflare
• DHCP client, DHCP server
• Option 43, Option 138
• Static/Dynamic NAT
• NAT loopback
• DNS client, DNS proxy, DNS server, No-IP DNS
• IPTV
• IPv4 ping
• IPv6, IPv6 ping
• Number of port mapping entries: 256
• Port mapping
• DDNS, Ruijie DDNS, Alibaba Cloud DDNS
• UPnP

Network Management & Monitoring:

• Web management

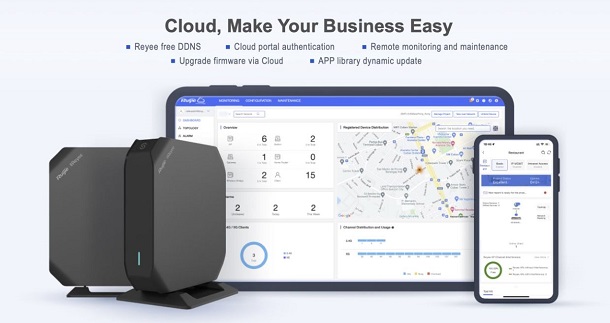

• Ruijie Cloud management
• Management on Ruijie Reyee App
• Remotely monitoring devices through Ruijie Reyee App
• Restarting devices through Ruijie
• Reyee App
• Upgrading device software version through Ruijie Reyee App
• Fault diagnosis
• TFTP client (IPv4 address):
• HTTPS login
• NTP client
• Scheduled device restart
• SNMPv1, v2c, and v3
• SON
• Web login information:
  - Default IP Address: 192.168.110.1
  - Default password: admin
• Max. number of managed devices (router mode):
  - AP and NBS series: 150
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series.

SD-WAN:

• SD-WAN
• SD-WAN performance: 80 Mbps
• Number of tunnels supported by SD-WAN: 24
• Maximum number of SD-WAN branches: 8
• Active/Standby mode (automatically switching to the standby interface when the active interface fails)
• Load balancing by link weight
• Centralized traffic forwarding policy
• Multi-WAN link bundling efficiency (lab data): ≥ 80%
• Ruijie Rapid Link Detection Protocol:
  - Network detection switching time: ≤ 10s

Security:

• ACL, IPv6 ACL
• Malformed packet attack defense
• Fragmentation attack defense
• Teardrop attack defense
• LAND attack defense
• SYN flood attack defense
• Smurf attack defense
• IP attack defense
• Disabling ping
• Stateful ACL
• IP-MAC binding
• Network sharing prevention
• Security log, Security zone
• User group-based connection limiting

VPN:

• IPsec VPN
• IPsec VPN bandwidth: 24 Mbps
• Max. number of branches in IPsec VPN networking: 8
• L2TP VPN
• L2TP VPN bandwidth: 140 Mbps
• Max. number of branches in L2TP VPN networking: 8
• OpenVPN
• OpenVPN bandwidth: 15 Mbps
• Max. number of branches in OpenVPN networking: 8
• PPTP VPN
• PPTP VPN bandwidth: 140 Mbps
• Max. number of branches in PPTP VPN networking: 8
• Number of VPN accounts for L2TP, PPTP, and OpenVPN: 100
• WireGuard server, WireGuard client
• WireGuard performance: 80 Mbps
• Number of concurrent tunnels supported by the WireGuard server: 8

WLAN:

• Access RSSI threshold
• Different SSIDs for different APs
• Forcibly disconnecting clients with low-weak signals
• Global blocklist and allowlist
• Power settings
• Roaming sensitivity
• User isolation
• Wireless Intelligent Optimization (WIO)
• WMM

Power Supply & Consumption:

• Power supply: DC power adapter
• Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.)
• Inner diameter: 2.1 mm (0.08 in.)
• Depth: 10 mm (0.39 in.)
• Max. power consumption: 15 W
• Surge protection:
• Service port: ±2 kV for common mode
• Power connector: ±4 kV for common mode and ±2 kV for differential mode (level R PASS)

Environment & Reliability:

• Cooling: Natural cooling
• Fan: Fanless design
• IP rating (Ingress Protection): IP30
• Mounting options: Desk, wall
• Operating humidity: 5% RH to 95% RH (non-condensing)
• Operating temperature: 0°C to 40°C
• Storage humidity: 5% RH to 95% RH (non-condensing)
• Storage temperature: -40°C to +70°C

Dimensions & Weight:

• Unit dimensions (WxDxH): 120 x 28 x 120 mm (excluding mounting bracket)
• Unit Weight: 0.251 kg
• Package dimensions (WxDxH): 180 x 130 x 86 mm
• Package weight: 0.56 kg

Package Contents:

• RG-EG105GW(T) Router
• 1x User Manual
• 1x Power Adapter
• 1x Warranty Card
• 1x Mounting Bracket (With 4 Foot Pads)
• 1x CA3x24mm Bolt
• 2x Expansion Anchor

Χαρακτηριστικά
Κατασκευαστής	Ruijie
Τύπος Προϊόντος	Wireless Router
Aggregate Wireless Throughput	1267Mbps
Antenna	Dual-band 2x2:2 MU-MIMO
Embedded Controller	ΝΑΙ
Max. Concurrent Clients	150
VPN	ΝΑΙ
Cloud managed / monitor	ΝΑΙ
Ethernet Port	Gigabit
Wi-Fi	ΝΑΙ
Εγγύηση	3 Χρόνια
