Ruijie-Reyee RG-EG105GW-X Wi-Fi 6 AX3000 High-performance All-in-One Wireless Router

The Ruijie-Reyee RG-EG105GW-X is a high-performance, enterprise-level wireless router, designed for small business offices, small-and medium-sized stores, food and beverage industry, etc. The brushed aluminum top cover of the metal housing not only  provides exquisite  texture, but  also shields external interference, thus improving the signal transmission quality and stability of the device. The RG-EG105GW-X router provides five 10/100/1000 Mbps self-adaptive Ethernet ports, including 3x GE LAN/WAN switchable  ports, 1x GE WAN port and 1x GE LAN port. The router supports up to 4 simultaneous broadband connections and up to 150 concurrent client connections, with 80 concurrent wireless clients recommended. RG-EG105GW-X can work in the 2.4 GHz and 5 GHz bands at the same time. Provides a combined data rate of about 3000 Mbps, with up to 574 Mbps in the 2.4 GHz band and 2402 Mbps in the 5 GHz band. Equipped with the  802.11ax RF chip, the RG-EG105GW-X supports MU-MIMO which improves the user experience for multi-user access.

Highlights:

• Professional & high-performance Wi-Fi 6 business VPN router
• Easy network construction with all-in-one wireless router
• One-Click Reyee Mesh
• Diverse enterprise-level features for different service scenarios.
• Securely monitoring the NVR/IPC/internal server anytime from anywhere
• 3 Year Warranty

Key Features & Benefits:

• Port Specifications:
  - Total number of RJ45 10/100/1000BASE-T ports: x5
  - Max. number of LAN ports: x4
  - Max. number of WAN ports: x4
  - Fixed LAN ports: x1
  - Fixed WAN ports: x1
  - LAN/WAN switchable ports: x3
  - USB 3.0 ports: x1
  - Reset button: x1
• LEDs:
  1x system status LED
  3x mesh LEDs

System Specifications:

• CPU: Dual-core processor, 1.3 GHz clock frequency
• Flash memory: 128 MB SPI NAND Flash
• RAM: 512 MB DDR3

Wi-Fi Radio:

• Wi-Fi standard: Wi-Fi 6 (IEEE 802.11ax) standard, compatible with IEEE 802.11a/b/g/n/ac standards
• Radio design:
  Dual-radio, 4 spatial streams:
  2.4 GHz: 2 x 2, MIMO
     5 GHz: 2 x 2, MIMO
• Operating band
• ​2.4 GHz Wi-Fi:
  - Wi-Fi 4 (IEEE 802.11b/g/n)
  ​- Wi-Fi 6 (IEEE 802.11ax)
• 5 GHz Wi-Fi:
  - Wi-Fi 4 (IEEE 802.11a/n)
  - Wi-Fi 5 (IEEE 802.11ac)
  - Wi-Fi 6 (IEEE 802.11ax)
• Coverage range: 145 ㎡ (1560.77 square ft.)
  2.4 GHz channel width: Auto/20/40 MHz
     5 GHz channel width: Auto/20/40/80/160 MHz
  2.4 GHz wireless data rate: 573 Mbps
      5 GHz wireless data rate: 2401 Mbps
• Max transmit power (2.4 GHz): Combined power: 29 dBm (single-stream power: 26 dBm)
• Max. transmit power (EU & UK):
  2400–2483.5 MHz, EIRP ≤ 20 dBm
  5150–5350 MHz, EIRP ≤ 23 dBm
  5470–5725 MHz, EIRP ≤ 30 dBm
• Max. transmit power (5 GHz): Combined power: 30.7 dBm (single-stream power: 26 dBm)
• Max. wireless data rate: 2974 Mbps

Antennas:

2.4 GHz: 2 external omnidirectional antennas
    5 GHz: 3 external omnidirectional antennas

System Performance Capacity:

• Max. number of concurrent sessions: 30000
• Recommended number of concurrent clients: 160
• Throughput: 1200 Mbps

Basic Configurations:

• Automatically identifying the
• Internet access mode and obtaining IP addresses
• Automatically learning the PPPoE username and password of other routers
• Configuration backup
• Internet access mode:
  - Static IP address
  - Static IPv6 address
  - Dynamic IP address
  - Dynamic IPv6 address
  - PPPoE
• Local upgrade
• Log upload
• Online upgrade
• Restoring factory defaults
• System language

Authentication:

• Portal authentication
• One-click authentication
• Password authentication
• SMS-based authentication
• Cloud portal authentication
• Local portal authentication
• QR code authentication
• CHAP, MS-CHAPv1, MS-CHAPv2
• 802.1X authentication
• MAC address-based authentication
• PPPoE server
• Number of accounts supported by the PPPoE server: 100
• Number of concurrent clients supported by the PPPoE server: 35
• PAP
• RADIUS authentication
• RADIUS client
• RADIUS accounting based on time or traffic
• RADIUS proxy server
• RADIUS traffic quota authorization
• RADIUS user group authorization

Ethernet Interface:

• Avoiding IP address conflicts on WAN interfaces
• Load balancing
• MAC address cloning
• Multiple WAN interfaces on the same network segment
• PPPoE clients

Ethernet Switching:

• VLAN
• Maximum number of VLANs: 16
• VLAN configuration supported on LAN ports
• VLAN priority
• Number of MAC address entries to be filtered: 256

Gateway Features:

• WAN failover

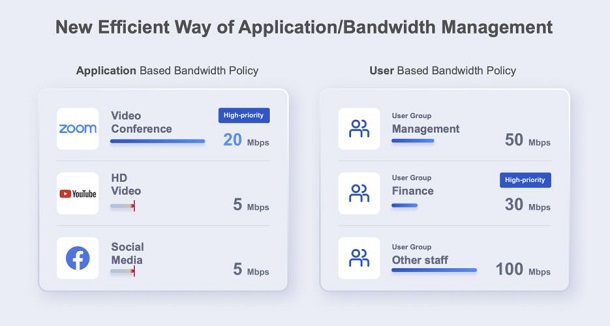

• Application priority
• Application recognition
• Behavior management
• Flow control
• YesTime-based blocking policy
• IP address-based blocking policy
• Website filtering: custom URL
• Traffic audit
• URL audit log
• Audit log server
• Uploading audit logs to a server

IP Routing:

• Application-based routing
• Bandwidth aggregation
• IPv4 static route
• IPv6 PBR, IPv6 static route
• Load balancing based on flows
• Load balancing based on source IP addresses
• Load balancing based on the interface weight
• Route selection by link quality
• RIP, RIPng

IP Service:

• 3322.org
• ALG
• ARP binding
• Max. number of ARP entries: 1024
• Cloudflare
• DHCP client, DHCP server
• Option 43, Option 138
• Static/Dynamic NAT
• NAT loopback
• DNS client
• DNS proxy, DNS server, No-IP DNS
• IPTV
• IPv4 ping
• IPv6
• IPv6 ping
• Number of port mapping entries: 256
• Port mapping
• DDNS
• Ruijie DDNS
• Alibaba Cloud DDNS
• UPnP

Network Management & Monitoring:

• Web management
• Ruijie Cloud management
• Management on Ruijie Reyee App
• Remotely monitoring devices through Ruijie Reyee App
• Restarting devices through Ruijie Reyee App
• Upgrading device software version through Ruijie Reyee App
• Fault diagnosis
• TFTP client (IPv4 address)
• HTTPS login
• NTP client
• Scheduled device restart
• SNMPv1, v2c, and v3
• SON
• Web login information:
  - Default IP Address: 192.168.110.1
  - Default password: admin
• Maximum number of managed devices (router mode):
  - AP and NBS series: 150
  - ES series: 128
  - Note: The maximum number of managed devices varies with each device series

SD-WAN:

• SD-WAN performance: 300 Mbps
• Number of tunnels supported by SD-WAN: 96
• Max. number of SD-WAN branches: 32
• Active/Standby mode:
  - Automatically switching to the standby interface when the active interface fails
• Load balancing by link weight
• Centralized traffic forwarding policy
• Multi-WAN link bundling efficiency (lab data): ≥ 80%

Ruijie Rapid Link Detection Protocol: Network detection switching time: ≤ 10s

Security:

• ACL, IPv6 ACL
• Malformed packet attack defense
• Fragmentation attack defense
• Teardrop attack defense
• LAND attack defense
• SYN flood attack defense
• Smurf attack defense
• IP attack defense
• Disabling ping
• Stateful ACL
• IP-MAC binding
• Network sharing prevention
• Security log
• Security zone
• User group-based connection limiting

VPN:

• IPsec VPN
• IPsec VPN bandwidth: 100 Mbps
• Maximum number of branches in IPsec VPN networking: 32
• L2TP VPN
• L2TP VPN bandwidth: 400 Mbps
• Max. number of branches in L2TP VPN networking: 32
• OpenVPN
• OpenVPN bandwidth: 80 Mbps
• Maximum number of branches in OpenVPN networking: 32
• PPTP VPN
• PPTP VPN bandwidth: 400 Mbps
• Max. number of branches in PPTP VPN networking: 32
• Number of VPN accounts for L2TP, PPTP, and OpenVPN: 200
• WireGuard server
• WireGuard client
• WireGuard performance: 300 Mbps
• Number of concurrent tunnels supported by the WireGuard server: 32

WLAN:

• Access RSSI threshold
• Different SSIDs for different APs
• Forcibly disconnecting clients with low-weak signals
• Global blocklist and allowlist
• Power settings
• Roaming sensitivity
• User isolation
• Wireless Intelligent Optimization (WIO)
• WMM

Power Supply & Consumption:

• Fixed power supply
• Max. power consumption: 20 W

Environment & Reliability:

• Mounting options: Desk
• Cooling: Fanless operation, natural cooling
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% Non condensing
• Storage Humidity: 5% to 95% Noncondensing
• Surge protection:
  - Service port: ±2 kV for common mode
  - Power connector: ±4 kV for common mode and ±2 kV for differential mode
• IP (Ingress Protection): IP30

Dimensions & Weight:

• Unit Dimensions (L × W× H): 283 x 172 x 46 mm (excluding the antennas and foot pads)
• Unit Weight: 1.2 kg
• Package Dimensions (L × W× H): 418 x 368 x 65 mm
• Package Weight: 1.71 kg

​ PartnerNet-Ruijie Reyee RG-EG105GW-X Wi-Fi 6 AX3000 High-Performance All-in-One Wireless Router Datasheet

Package Contents:

• RG-EG105GW-X Router
• 1x Power Cord (1.5 m)
• 1x User Manual
• 1x Warranty Card
